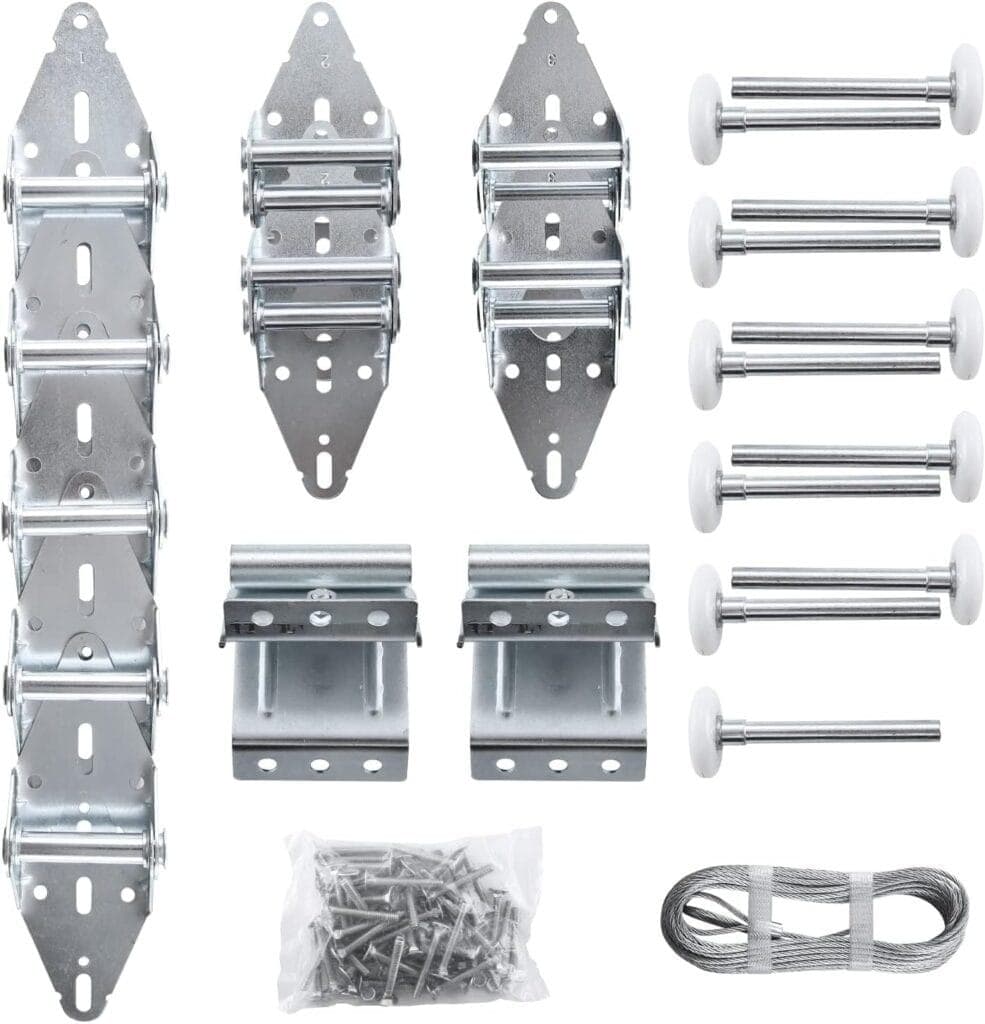

Garage door roller, hinge and track hardware during inspection

Noise and Binding Diagnosis · $220 + GST Full Roller Set · Price Confirmed First

Garage Door Roller and Hinge Replacement in Red Deer

A noisy garage door does not automatically need every moving part replaced. We hand-test the door, inspect each roller and numbered hinge, check track spacing and panel condition, then explain whether the sensible repair is one damaged part, a full roller set, reinforcement or track work.
$220standard full set
Employeetechnicians
9published repair rows

32,000+

completed jobs since 2019

Company-wide

3,610+

five-star Google reviews

Company-wide

BBB

accredited business

Publicly verifiable

Written

price before work

Scope explained first

The short answer

Find the friction before buying hardware

Worn roller bearings often create grinding, rattling or side-to-side wobble. Cracked hinges produce popping at section joints. Bent tracks can make a good roller bind, and a heavy or poorly balanced door can make every part sound worse. The useful diagnosis begins with the opener disconnected and the door moved by hand.

If a roller has left the track, a hinge has torn from a section or the door is crooked, stop operating it. A small hardware fault can bend a track or damage a panel when the opener keeps pulling.

Garage Door Fix roller and hinge inspection
One sound, several causes

What the noise or rough travel may mean

The loudest part is not always the failed part. Location, timing and hand travel narrow the diagnosis.

Grinding along the track

A rough or seized roller bearing can scrape, wobble or shed metal. Dirt in the track may add noise, but track grease is not the cure.

Pop at a section joint

A cracked, bent or incorrectly numbered hinge can force sections apart as the door follows the curve. Loose panel fasteners can sound similar.

Binding at the same height

Track spacing, a dent, a loose bracket or a roller with the wrong stem may pinch at one point in travel. Replacing every roller will not straighten the track.

Roller outside the track

Stop the opener. The section can twist, another roller can escape and the door can become unstable. Do not push it back while the door is loaded.

Top section flexes

A torn operator bracket or weak top section lets the opener bend the panel. Reinforcement may be needed before opener force is adjusted.

Whole door rattles

Loose hinges, track fasteners, opener hardware, dry springs and panel play can overlap. A full inspection prevents a parts-changing guessing game.

Current Red Deer catalogue

Roller, hinge, bracket, strut and track prices

These rows come from the live Red Deer pricing database. We identify the damaged hardware and confirm which row applies before work begins.

All Rollers Replacement

$220 + GST

Complete roller replacement; installation included in the matching general price row.

Individual Roller/Hinge/Top Fixture (in addition to maintenance cost)

$20 + GST

each

Operator Bracket Repair

$180 + GST

Price and scope confirmed before work begins.

Strut Installation

$280–$320 + GST

Price and scope confirmed before work begins.

1 Vertical Track

$220 + GST

Price and scope confirmed before work begins.

1 Horizontal Track

$280 + GST

Price and scope confirmed before work begins.

2 Vertical Tracks

$380 + GST

Price and scope confirmed before work begins.

2 Horizontal Tracks

$460 + GST

Price and scope confirmed before work begins.

Both Vertical and Horizontal Tracks (both sides)

$580 + GST

Price and scope confirmed before work begins.

Prices are plus 5% GST. The individual-hardware row is explicitly listed as additional to maintenance cost. Track rows cover different portions of the system; a complete pair is currently $580 + GST. See the complete Red Deer price list for springs, cables, openers, seals and maintenance.

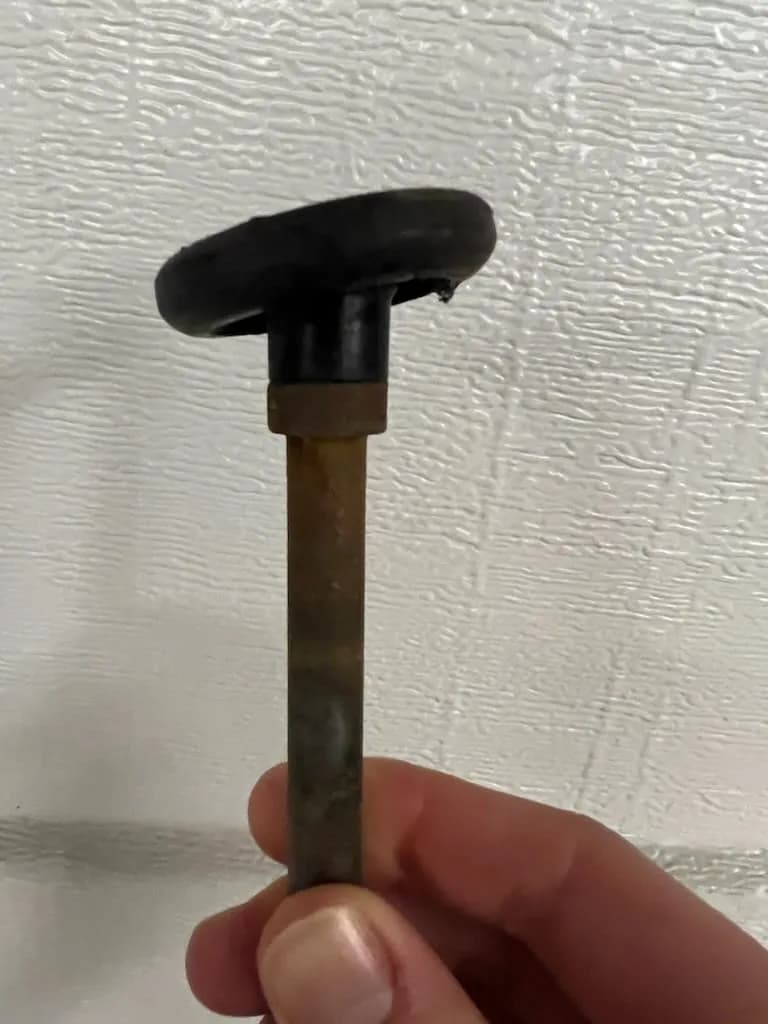

Bent plastic garage door roller removed during a Garage Door Fix inspection

Failed hardware

Material is only part of roller quality

A quiet-looking plastic wheel is not automatically durable. Wheel diameter, bearing construction, stem length, load rating and track fit decide whether the roller runs straight or bends under load.

Garage door track, hinge and roller hardware

Correct geometry

Roller, hinge and track work as one system

A roller needs enough stem movement to follow the track without letting the section wander. Numbered hinges set the spacing between sections. Track position keeps the door close to the jamb without squeezing it.

Photos are from Garage Door Fix's service and installation portfolio and are not presented as specific Red Deer customer jobs.

Repair only what failed

One roller, a full set or a track repair?

One impact-damaged roller can be replaced by itself when the remaining rollers turn smoothly and have little play. A full set makes more sense when several same-age bearings grind, wobble or seize. Individual hinge work is reasonable when the correct numbered hinge and its mounting area are still serviceable.

Track repair is a separate decision. A good roller will still bind inside track that is pinched, badly dented or set too tightly. Struts and operator brackets address section flex; they are not substitutes for repairing a cracked or delaminated panel.

Bottom hardware is different

The bottom roller sits in the bottom bracket, where the lift cable attaches. That bracket can remain loaded by spring tension when the door is closed. Treating it like an ordinary middle hinge can release the bracket or cable without warning.

  • Do not remove the bottom bracket
  • Do not pry a roller back into the track
  • Do not keep cycling a crooked door
  • Do not grease the track to hide binding
The complete repair

How roller, hinge and track work should be handled

The goal is smooth hand travel and stable sections, not simply a quieter opener.

01

Hand-test the door

The opener is disconnected when safe. Resistance, balance, noise location and the point where binding begins are checked by hand.

02

Inspect every interface

Rollers, numbered hinges, tracks, brackets, fasteners, panel joints, struts and the opener attachment are examined together.

03

Approve the scope

The technician explains whether individual parts, a full roller set, reinforcement or track replacement is justified and confirms the price first.

04

Align and test

New hardware is fitted, track spacing is checked and the door is cycled by hand before opener travel and safety operation are tested.

What Central Alberta winter reveals

Cold thickens unsuitable grease and makes tired open bearings harder to turn. Condensation, meltwater and road salt can add corrosion around lower hardware. A door that becomes much louder in cold weather is giving useful evidence, but temperature is not a diagnosis by itself.

Tracks should be clean and dry, not packed with grease that traps grit. Appropriate garage-door lubricant belongs on serviceable bearings, hinges and other specified pivot points. Cracked hinges, loose wheels and bent track need repair, not another spray.

What to ask before approving the quote

  • Which rollers or hinges are actually failed?
  • What roller material, bearing type, diameter and stem length are included?
  • Is track repositioning included, or is track replacement a separate row?
  • Are panel cracks, stripped fasteners or reinforcement needs documented?
  • What parts-and-labour warranty applies to this exact repair?

Family-owned since 2019

Hardware repair should preserve a serviceable door

Rollers, hinges, tracks, struts and operator brackets are replaceable parts. A new door becomes a separate conversation when sections are badly cracked or delaminated, multiple fixtures have torn from weak material, the opening cannot hold track securely or several major systems are failing together.

Stan and Marta Klugman founded Garage Door Fix in 2019. Garage Door Fix sends employee technicians, so booking, diagnosis, repair records and follow-up stay with the same company. The practical standard is simple: show what failed, explain the options and leave the door moving properly by hand before reconnecting the opener.

Roller, Hinge and Track Questions — Red Deer

The current Red Deer price for all rollers on a standard 7- or 8-foot residential door is $220 + GST. The matching general price row says all rollers and installation are included. Individual roller, hinge or top-fixture work is listed separately when completed with maintenance.

They can make a large difference when worn bearings, loose wheels or metal-on-metal roller noise is the cause. New rollers will not cure a rattling opener rail, cracked hinge, loose panel, bent track or dry spring. The door should be hand-tested so the sound is traced before parts are sold.

A full set is sensible when the rollers are the same age and several bearings are rough or loose. The current full-set price is $220 + GST. One damaged roller or hinge may be repaired individually when the rest remain sound; the published individual row is $20 + GST and is stated as additional to maintenance cost.

A full set means every guide roller installed on that specific door. The count changes with door height, section count and hardware layout, so the technician counts the existing positions rather than promising one universal number. The standard Red Deer full-set row applies to 7- and 8-foot residential doors.

Quality nylon rollers are often quieter, which matters beside a bedroom or living space. Material alone does not decide quality. Bearing construction, wheel diameter, stem length, load rating and track condition all matter. Ask what roller is included rather than accepting nylon as the whole specification.

Yes, when the surrounding section and screw holes remain sound. Hinges are numbered by position and are not interchangeable. If holes are stretched, the panel is cracked or several hinges keep failing, the track spacing or section reinforcement needs attention too.

Minor track-position problems may be adjustable. A sharply creased, split, heavily corroded or repeatedly spreading track may need replacement. Red Deer prices list single vertical, single horizontal, paired and complete track options so the quote can match the damaged area.

Do not remove the bottom bracket. The lift cable attaches there and may remain under spring tension even with the door closed. Middle and top hardware have different risks, but the door still needs to be secured before any hinge or roller is removed.

A bent or incorrectly numbered hinge can force sections apart as the door turns through the track radius. Loose fasteners, panel damage and track spacing can create the same pop. Replacing a roller without checking the section joint may leave the actual fault untouched.

Cold can make thick or unsuitable lubricant drag, while condensation and road salt can corrode open bearings and lower hardware. Cold often exposes wear that already existed. Cleaning, correct lubrication and correct track spacing matter more than blaming temperature alone.

The time depends on door height, the number of parts, track condition and whether damaged panels or fasteners need repair. A straightforward full roller set and a bent-track repair are different jobs. The scope should be confirmed after the door is hand-tested rather than promised from one symptom.

Warranty terms depend on the supplied part and approved repair scope. The current Red Deer roller-category records do not publish one blanket warranty term. Ask for the parts-and-labour coverage in writing before approving the quote.

Call (587) 847-0040 with the address. The office will confirm coverage, scheduling and any travel charge before you book.

Not sure whether the noise is hardware or the opener?

Compare the symptoms across every Red Deer repair path.

View all services

Garage Door Grinding, Popping or Binding in Red Deer?

Call with the door size and where the noise begins. We will explain the safe next step and confirm the applicable roller, hinge or track price before work.

Call Garage Door Fix Red Deer
