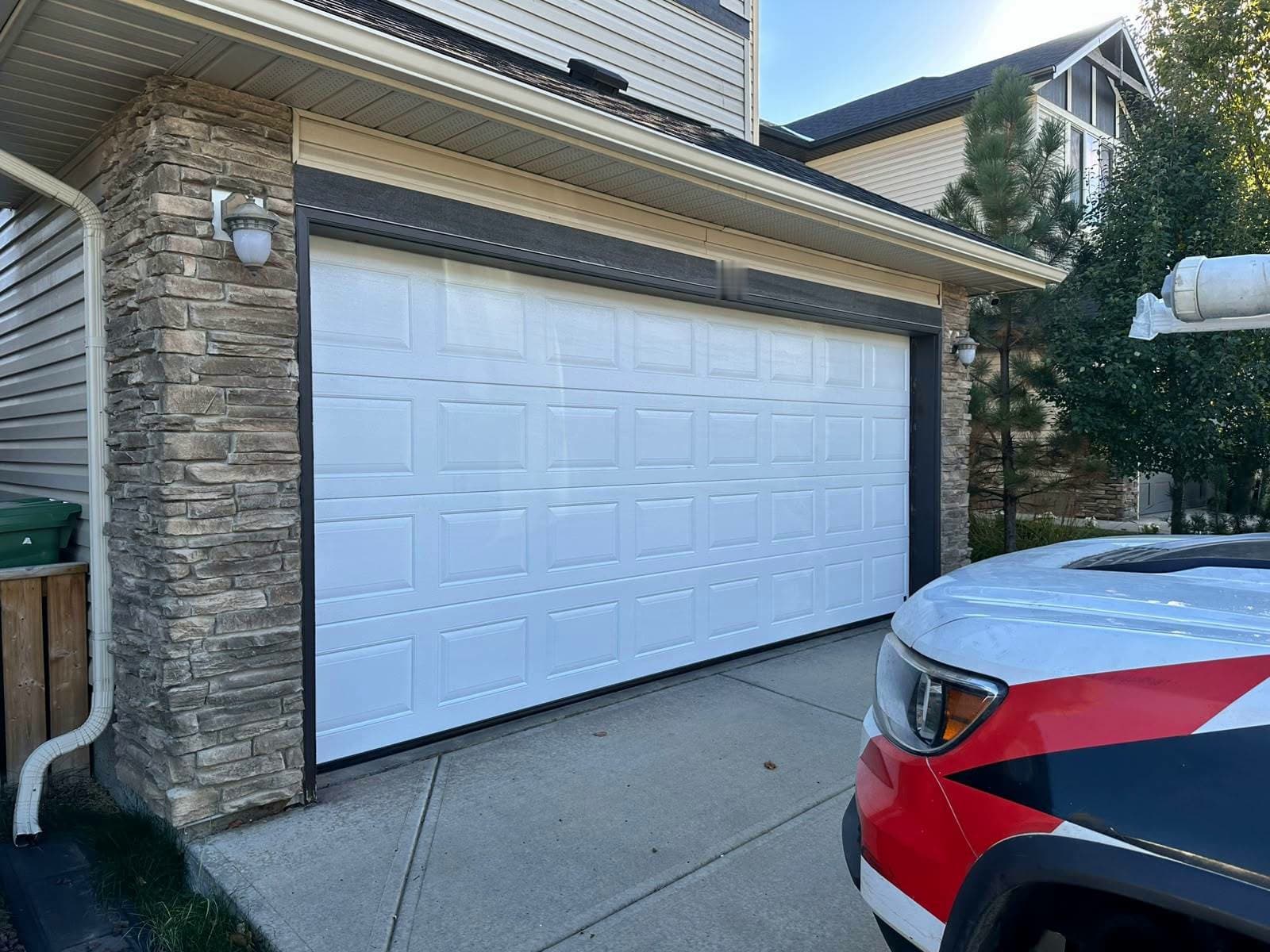

Our first Ryterna garage door installation in Edmonton was a white Cassette-style sectional door. From the driveway, it looks clean and traditional. Behind the panels, this job was specified with 25,000-cycle torsion springs, heavy-duty lifting cables, spring-break safety hardware and perimeter seals.
Mack and Matt, the technicians who installed it, noticed the quality before the door went up. The components arrived carefully protected, and the hardware felt solid as they unpacked and fitted it. Their observation is first-hand; the component ratings are the specifications supplied for this job, not something the photos alone can verify.
Installation notes
Four details worth asking about
These are the components specified on this installation. Ask for the exact configuration in writing when comparing doors; a similar-looking panel can come with different hardware.
High-cycle torsion springs
The spring rating is a design specification, not a promise of how many years it will last in service.
About spring repairHeavy-duty lifting cables
The cables work with the torsion system to lift and lower the door. Their condition and adjustment matter every time it moves.
Spring-break safety hardware
Designed to help control the door if a spring fails. It does not make a damaged or unbalanced door safe to use.
Perimeter seals
Seals help limit drafts, wind-driven dust and water at the edges. They do not make the entire garage airtight.
About weatherstripping
The outside
Why a plain white Cassette door?

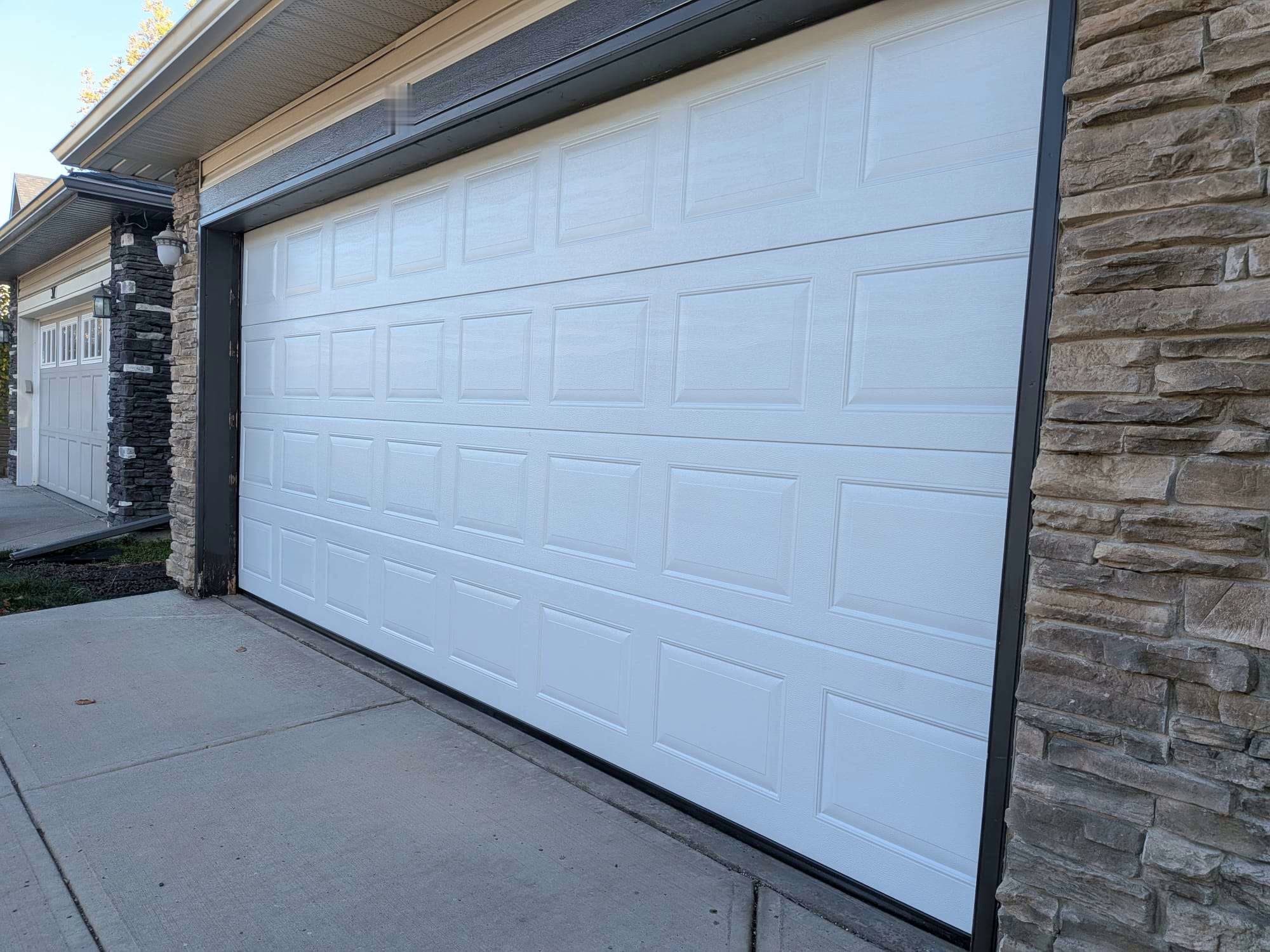

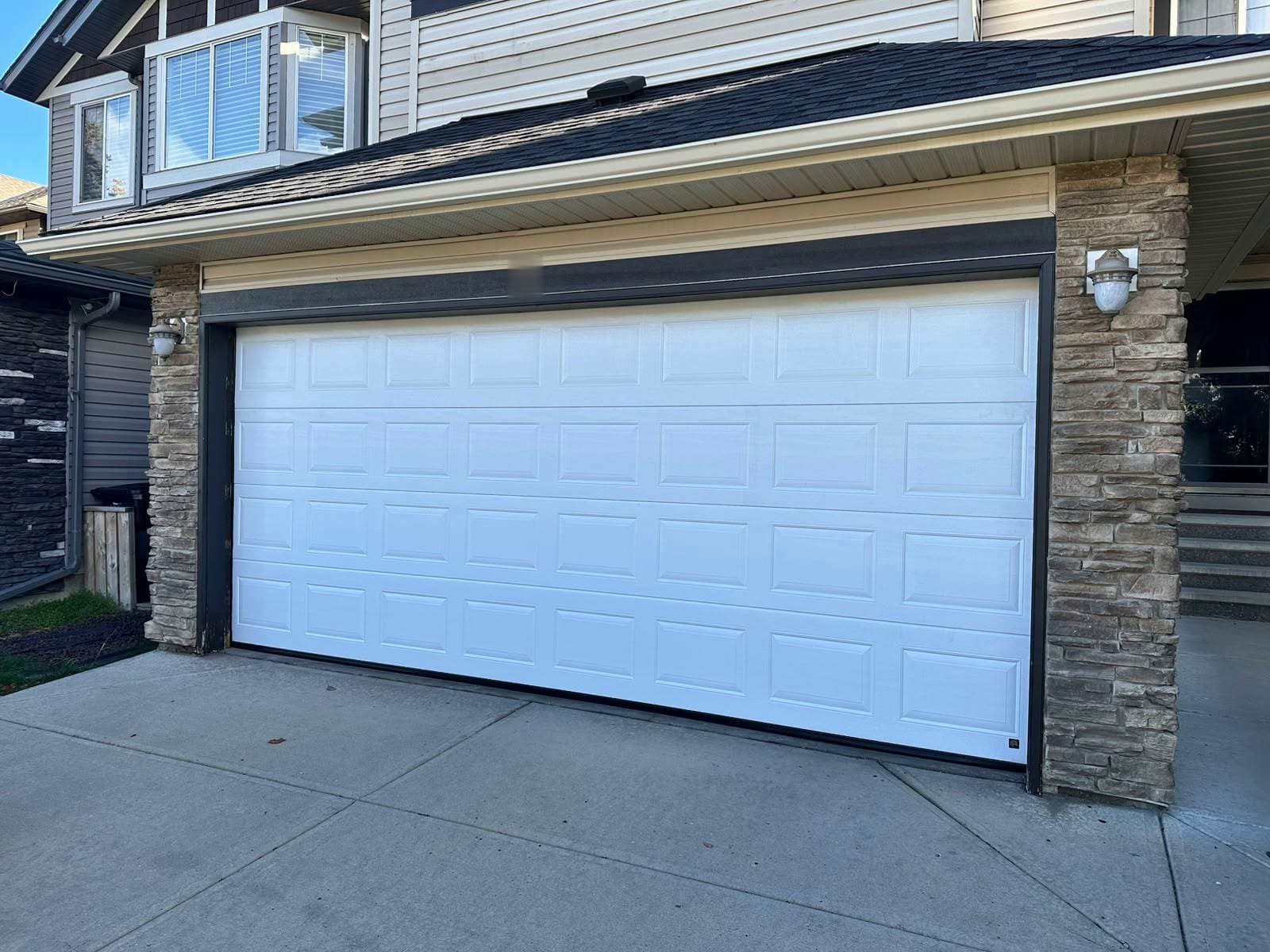

The raised-panel pattern and white finish suit the home's exterior. There is no dramatic colour or glass feature announcing a premium door. That restraint was the point.
The simple appearance does not leave out the hardware. When shopping for an Edmonton residential garage door, compare more than colour and panel design. Two white doors can look much the same in a driveway photo while having different springs, cables, safety hardware and seals.
Behind the panels
What Mack and Matt noticed
A garage door has a long trip before it reaches an Edmonton driveway. Panels and hardware can arrive scuffed or damaged. Mack and Matt were impressed with how this order was packed and protected, then with how the components felt as they installed them.

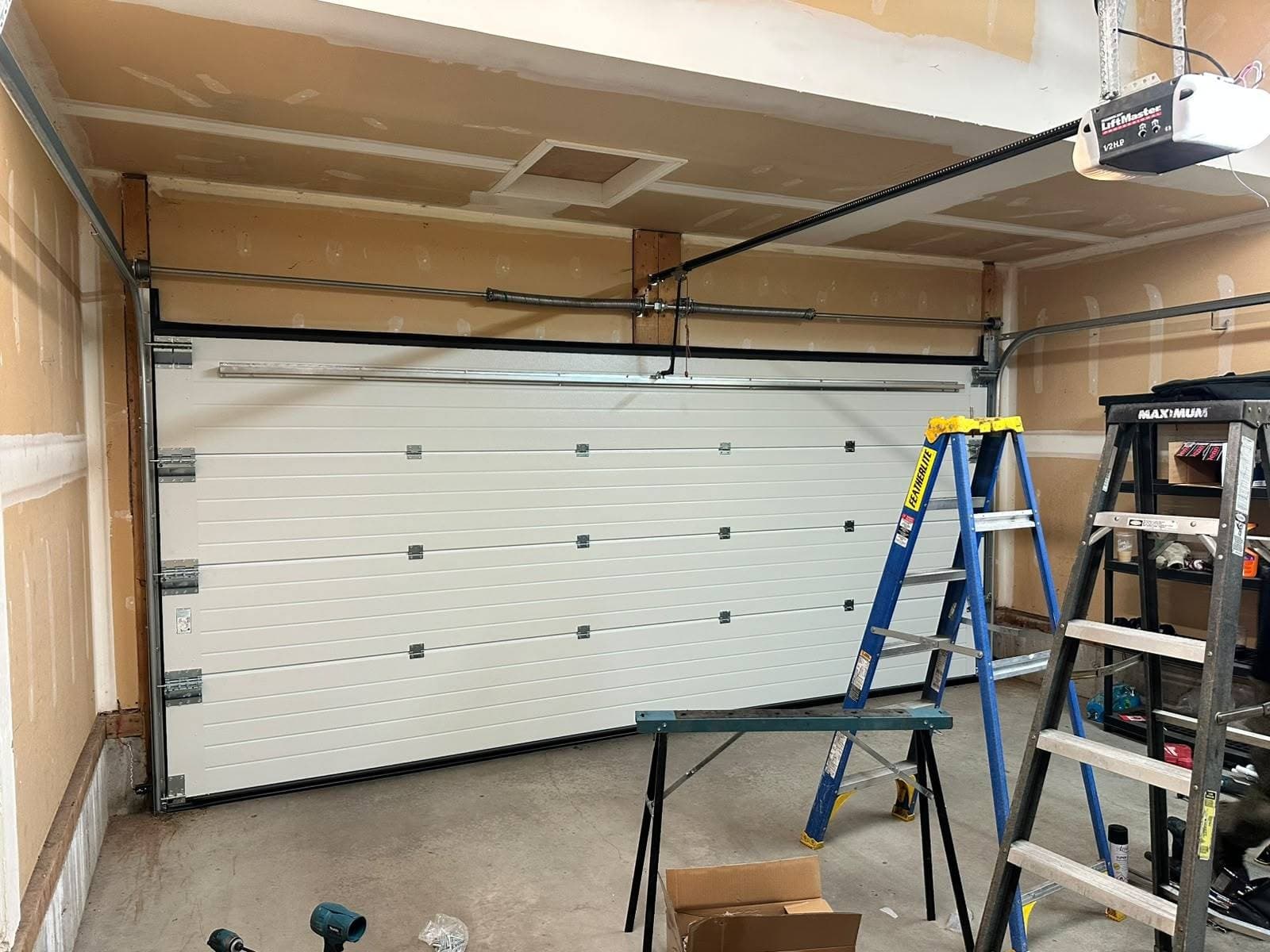

The interior photo shows the installed sectional panels, tracks and torsion area. It does not establish the spring cycle rating or identify every safety component. Those details come from the job specification.
What to take from this job
Look past the panel design
The exterior is deliberately familiar. The useful questions are behind it: What is the spring cycle rating? Which cables and safety hardware are included? How is the opening sealed? What does installation cover, and what does the written warranty say?
Perimeter seals can help limit Edmonton drafts, but they cannot decide the temperature of the whole garage. Insulation, other air leaks, heating and how often the door opens matter too. Our guide to doors freezing shut in Edmonton covers another winter problem worth knowing.
If your current door may only need repair, start with our published Edmonton repair pricing before comparing replacement quotes.
A quote worth comparing
Ask for the complete door specification, not just a panel photo.
Garage Door Fix is Ryterna's exclusive Canadian dealer. We have not published this homeowner's private price. If you want a white Cassette door or another Ryterna design, talk to our Edmonton door team about your opening, priorities and an itemized installation quote.
